35T Tractor
Details
NO. | Item | General Parameter | Remark | |
1 | （Cell Model） | FREY 36130-105AH | （Single，36*130*200mm） | |
2 | Casing material for single cell | Aluminum alloy | ||
3 | Standard capacity（0.3CA） | 315Ah | ||
5 | Rated voltage | 51.2V | Work voltage：3.20V | |
6 | Max.Charge voltage | 58.4V | Single Ave. charge Voltage: 3.65V | |
7 | Cut-off voltage | 44V | Single Ave. Discharge Voltage: 2.75V | |
8 | Standard charge current | 100A | ||
9 | charging Time | About 3 h | ||
10 | Continuous discharge current | 150A | ||
12 | Peak discharge current | 300A | 20 seconds | |
13 | Battery dimension |
≤910*910*400mm（L*W*H）

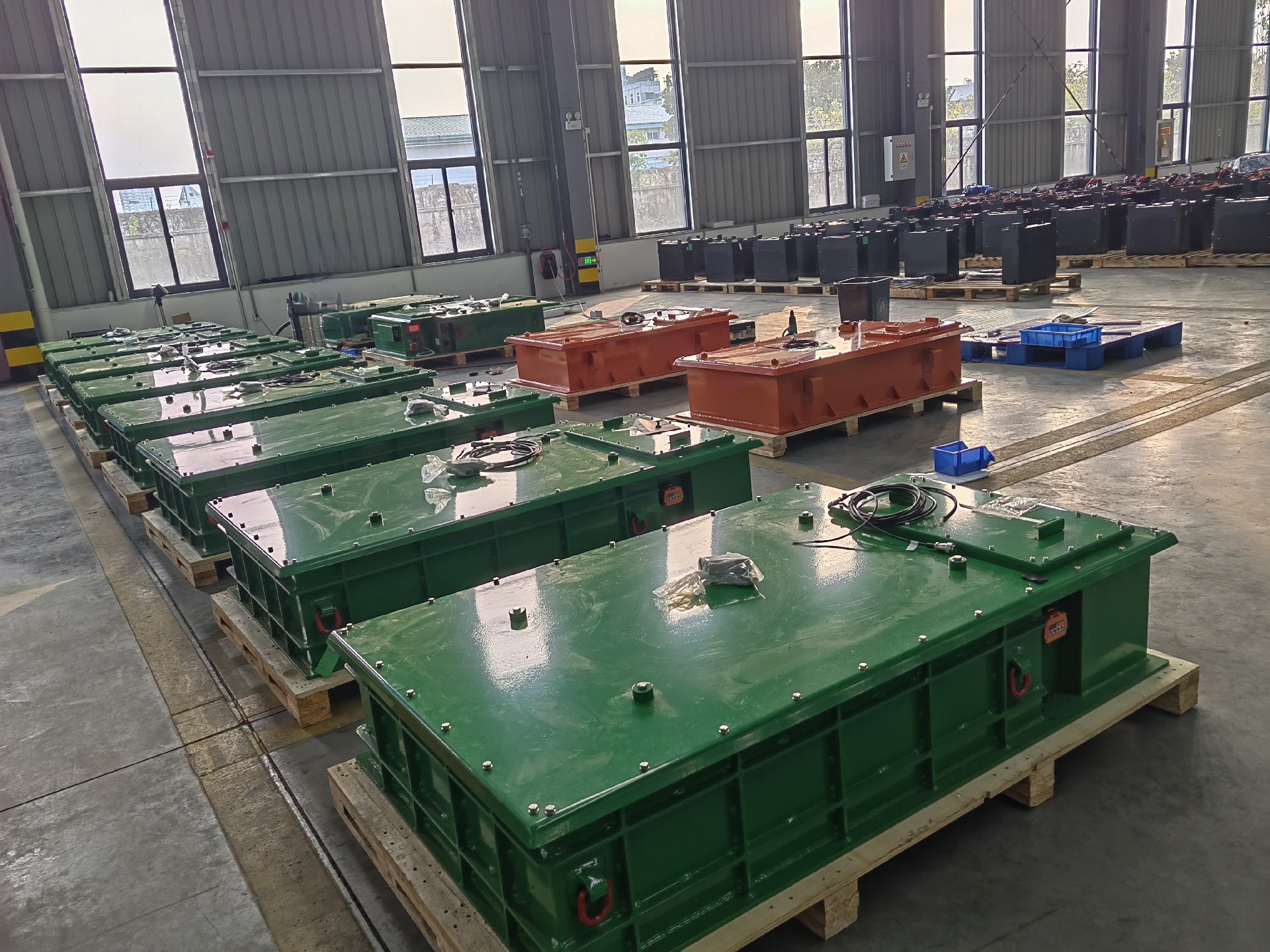

| Spray coating: Green RAL6001 | |
14 | Total weight（Approx.) | 235Kg | ||
15 | Charge method (CC/CV) | Charge | 0℃～55℃ | Start heating below 0 ° C |
| Charge method (CC/CV) | discharge | -35℃～60℃ | Discharge heating (starting heating below -18 ℃) | |
| Charge method (CC/CV) | storage | Temperature: 20 ℃~45 ℃ Humidity: 25% to 65% | Avoid direct sunlight exposure | |
16 | IP Grade | IP54 | ||
17 | Rest Time | 6H | ||
18 | MODEL | 2.5T battery locomotive | ||
| 19 | Wiring definition diagram |
| ||
